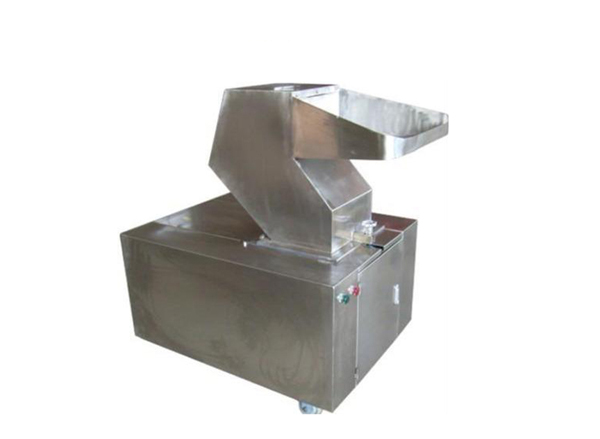

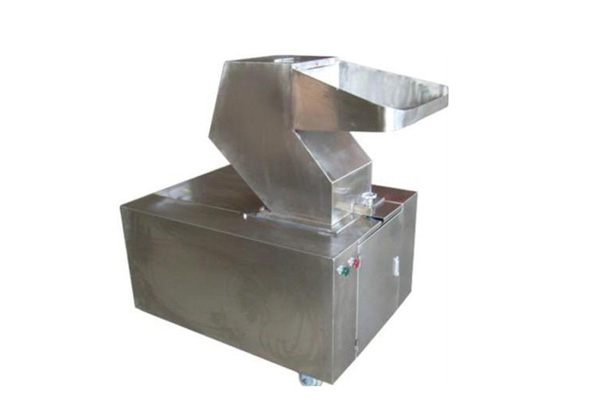

Cow bone crushing equipment
The cow bone crushing equipment is specially designed for crushing bones such as cow bones, sheep bones, pig bones, and fish bones. It is made of high-quality 304 stainless steel, environmentally friendly and hygienic, meeting food processing standards.The equipment offers six core advantages: optimized tool design disperses force to enhance shear strength and impact resistance; front blades with ideal cutting angles ensure uniform particle crushing; the feed hopper features soundproofing with stainless steel for excellent noise reduction; blades made of alloy steel undergo special heat treatment for superior wear resistance, with adjustable and repeatable sharpening for extended service life; the motor is equipped with overload protection, and interlocking of feeding and power ensures operational safety; integration with a conveyor belt enables automated material loading and unloading, reducing labor intensity.This machine is easy to operate, simple to clean and maintain, compact in structure, low in temperature rise, does not accumulate material, and has adjustable particle size. The crushing range is 5-80mm, widely applicable in fields such as sausages, meatballs, bone broth, bone meal, and pet food.The series covers five models from PG-150 to PG-500, with production capacity ranging from 20 to 600 kg/h, meeting the needs of different production scales.
The beef bone crushing equipment is a new type of meat processing equipment developed by our company for crushing bones such as beef, sheep, pork, and fish bones. The machine is made of high-quality 304 stainless steel, featuring environmental hygiene, high production efficiency, safe and reliable operation, and uniform crushing.
Product advantages:
1. The optimized design of the tool holder disperses the force on the cutting tools, improving the shear force and impact resistance of each blade.
2. The front-mounted blades and blade cutting angle improve cutting efficiency and ensure uniform particle crushing.
3. The feeding hopper is soundproofed and made of stainless steel material, offering noise reduction and durability.
4. The tool is made of alloy steel with special heat treatment, offering excellent wear resistance. The tool installation is adjustable and retractable. After becoming dull, it can be sharpened multiple times and reused repeatedly, ensuring a long service life.
5. The motor is equipped with an overload protection device, and the feeding part is interlocked with the power supply for protection, ensuring the safety of operators.
Product features:
1. This machine can be used in conjunction with a conveyor belt, adopting automated feeding and discharging to reduce labor intensity. It features simple operation, easy cleaning and maintenance, compact structure, stable performance, low temperature rise, no material accumulation, and adjustable particle size.
2. Application and Process This bone crusher is especially suitable for crushing dry bones, fresh beef bones, pork bones, lamb bones, donkey bones, and various other large animal bones and fish bones, with a crushing range of 5-80 mm.
Scope of Application:
Bone crusher is widely used for crushing hard materials such as various sausages, ham sausages, bone soup ingredients, luncheon meat, meatballs, frozen foods, savory flavors, bone marrow extracts, bone meal, bone glue, chondroitin, bone soup, bone peptide extraction, biological products, instant noodles, puffed foods, compound seasonings, catering ingredients, pet foods, and frozen meat.
Model |
Output (kg/h) |
Feed inlet size (mm) |
Power (kw) |
Voltage (v) |
Dimensions (mm) |
Weight (kg) |
PG-150 |
60-200 |
150×200 |
2.2 |
380 |
800*500*1000 |
130 |
PG-230 |
30-100 |
250×210 |
4 |
380 |
950*600*1200 |
280 |
PG-300 |
80-200 |
300×210 |
5.5 |
380 |
1000*700*1300 |
340 |
PG-400 |
150-400 |
380×250 |
7.5 |
380 |
1000*850*1400 |
420 |
PG-500 |
200-600 |
500×250 |
11 |
380 |
1200*1000*1500 |
600 |
