Briquette binder processing equipment

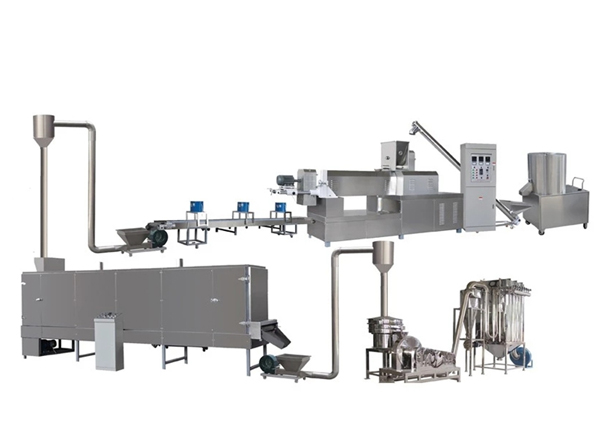

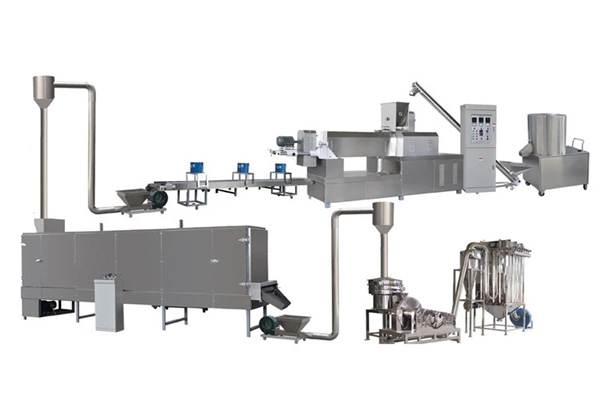

The DT120 large-scale pregelatinized starch production line is specifically designed for the mass production of pregelatinized starch. The main motor has a power of 132kW and is equipped with three frequency conversion systems for the main unit, rotary cutting, and feeding, ensuring precise speed control, energy efficiency, and high performance. The entire line occupies only 150 square meters and requires a 250KVA transformer to meet production needs. According to cost calculations, the comprehensive cost of producing one ton of pregelatinized starch (including electricity, labor,损耗, packaging, management, and maintenance) is approximately 350 yuan, offering significant economic benefits.
Products are widely used in the briquette binder field—pregelatinized starch is added at a ratio of 20% in the binder, and with only 2.5% of the binder added to the briquettes, the finished product strength reaches over 50 kilograms, ensuring no breakage during storage and transport, no smoke, odor, or dust during combustion, and sulfur dioxide is solidified in the furnace ash to reduce atmospheric emissions. Currently, the Beijing-Tianjin-Hebei region is vigorously promoting clean briquettes as a replacement for bituminous coal, offering broad market prospects. The company provides a one-stop service including equipment selection, process design, formula support, and installation and debugging.
DT120 large pregelatinized starch production equipment, main motor 132kw, three major variable frequency systems: main motor VFD, rotary cutter VFD, and feeder VFD. DT120 production line covers 150 square meters, 250 transformer.
Electricity cost |
0.75 yuan per kWh |
112.5 |
150 kWh per ton |
Labor |
3 people |
37.5 |
8 hours per shift, 100 yuan per person, production line calculated with 3 people |
Waste |
3000 yuan/ton*5% |
150 |
|
Packaging bag cost |
0.1 yuan/piece |
2.5 |
Based on 80 jin/bag, 25 packaging bags |
Production management cost |
5 |
||
Equipment depreciation and maintenance cost |
5 |
The labor, electricity, and loss cost for producing one ton of pregelatinized starch is about 350 yuan.
Raw material formula: corn, cassava, starch.
Production process of large-scale pregelatinized starch extruder: starch → mixing → gelatinization → cooling and drying → crushing → packaging. Clean briquette, also known as clean coal, is a high-quality civil coal product produced by mixing anthracite powder with a binder, followed by processes such as stirring, forming, drying, and bagging. The addition amount of pregelatinized starch in the briquette binder is 20%, and the addition amount of the briquette binder in the briquette is 2.5%.
Clean briquette, also known as clean coal, is a high-quality civil coal product produced by mixing anthracite powder with a briquette binder, followed by processes such as stirring, forming, drying, and bagging.
1. After drying, this type of briquette has a strength of over 50 kg, and after packaging, it does not break during storage and transportation, is pollution-free, and produces no smoke, odor, or dust during combustion.
2. It enables different stoves to achieve clean emissions. Since solid oxygen that can change the combustion characteristics of the briquette and enable combustion from the inside out is added during production, the carbon content in the ash does not exceed 1%. Additionally, the sulfur dioxide generated during combustion is converted into sulfur trioxide after oxygenation, which solidifies in the ash, reducing the emission of sulfur-containing gases into the atmosphere.
3. Clean briquettes use high-quality anthracite coal with a calorific value greater than 5,800 kcal and sulfur content below 0.4%. The briquettes have high calorific value, long-lasting durability, do not form clinkers, offer better air permeability, and are easy to use. The price is about 300 yuan/ton cheaper than anthracite lump coal of the same quality.
4. Currently, clean briquettes are strongly supported and promoted. In the Tianjin-Hebei region, the use of bituminous coal and loose coal is banned this year. Lump coal is used as a transitional fuel, but all coal use will eventually shift to clean briquettes.
In Shanxi and Inner Mongolia, clean briquettes are priced at 850-950 yuan/ton (after subsidies), while anthracite coal costs 750-1,200 yuan/ton. Government subsidies for briquettes range from 200 to 500 yuan per ton (prices vary by location depending on the price of raw coal).
