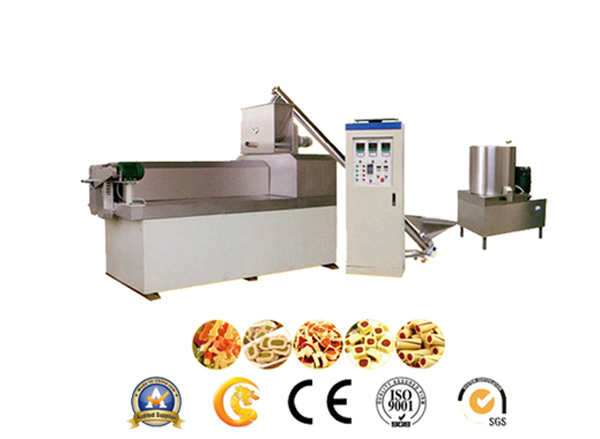

Dog chew production line
This production line operates as a fully automated closed-loop system from mixing to packaging, specifically designed for the multi-form production of dog chews. The equipment utilizes single-screw hot extrusion technology with adjustable temperature control, allowing free regulation of the product's expansion, hardness, and structural organization, ensuring a smooth surface without gelatinization. The cutting system offers high precision, enabling flexible adjustment of particle length with clean, burr-free cuts.
The production line has strong adaptability, allowing quick mold changes to produce various shapes such as bones, balls, sticks, and multi-color twisted patterns, meeting pets' chewing and dental cleaning needs. The drying stage uses a circulating electric oven with a double-layer stainless steel mesh belt and a wide temperature control range of 0-200°C, reducing moisture, improving the cooking rate, and extending the shelf life. The entire line is optimized for energy consumption, supporting stable high output to help customers reduce costs and increase efficiency. It is an intelligent manufacturing solution for pet snacks that combines aesthetics and durability.
Pet Snack Dog Chew Production Line
Datong Machinery's pet snack production line is fully automated from mixing, extrusion, cutting, cooling to packaging. This production line produces a type of pet toy or pet snack; dog chews are shaped like bones, balls, rings, sticks, and pellets. Since dogs have a natural tendency to chew on bones, the designed shapes cater to their play habits. Dog chews are specially designed chewing items for cleaning dogs' oral cavities. The pet snack production line can be used to produce single-color dog chews, twisted single-color dog chews, etc. The equipment features smooth extrusion surfaces, good molding effects, high cutting length precision, and neat cut ends, making it highly popular in the market.
Pet chew equipment process flow: raw material mixing—extrusion molding—conveying—shaping and cutting—drying—cooling

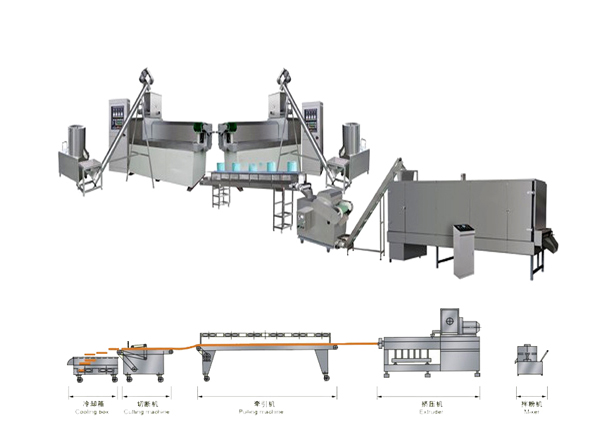

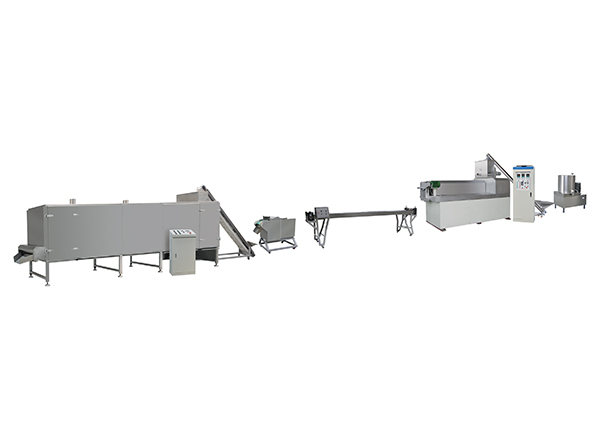

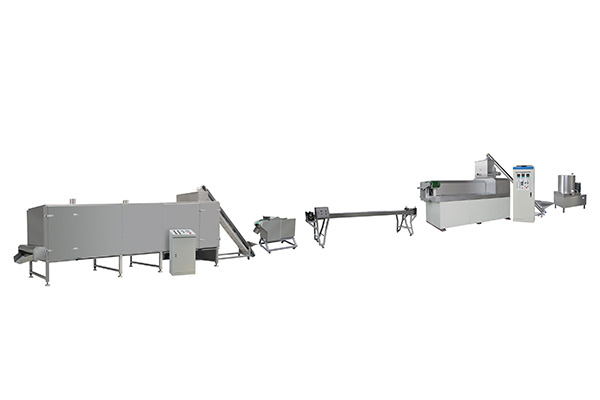

Pet chew production line equipment configuration:
1. Mixer 2. Screw conveyor 3. Single-screw extruder 4. Cooling conveyor
5. Cutting machine 6. High lifter 7. Circulating oven 8. Cooling conveyor
Pet chew production line process composition
1. Raw material mixing: Mix various meat raw material powders and gelatinous powders evenly, and adjust the moisture content.
2. Raw material conveying: Stainless steel screw conveyor automatically feeds into the screw extruder
3. Extrusion and curing: Screw extrusion is a type of hot extrusion, but the extrusion temperature can be freely controlled, so the forming state, structure, expansion degree, and hardness can all be freely controlled.
4. Cooling: Since the chewable particles are produced by hot extrusion, they come out of the extruder at a relatively high temperature and need to be cooled to bring the overall temperature inside and outside the particles down to room temperature, ensuring storage and sales.
5. Cutting and forming: The cooled long chew sticks are cut into uniformly sized chewable particles, and the particle length can be freely controlled by adjusting the cutting speed.
6. Conveyor: Transports the chews to the oven.

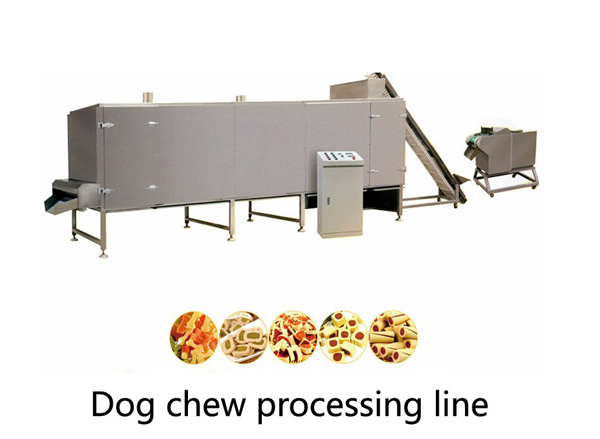

7. Multi-layer oven: The oven is mostly an electric oven, with the temperature adjustable between 0-200 degrees Celsius via the control cabinet. The interior features a stainless steel double-layer mesh belt, which reduces moisture in chewable particles, promotes ripening rate, and extends shelf life.
8. Cooling conveyor: Cools to room temperature for easy packaging.
Other detailed parameters:
Model |
Total Installed Capacity Installed power |
Actual power Real power |
Output Output |
DLG100 Processing Line |
134kw |
70-80kw |
80-120kg/h |
DLG130 Processing Line |
170kw |
80-90kw |
120-200kg/h |
