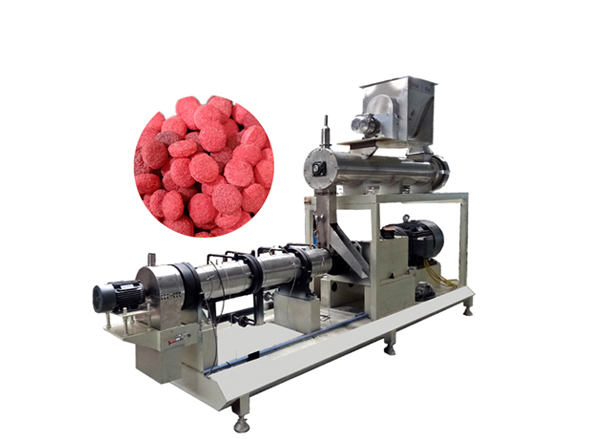

Puffed fish bait processing equipment
Puffed fish bait processing equipment is specially designed for modified starch and fish bait feed processing. By optimizing the machine cavity and screw structure, it achieves diversified starch functions, and the products can be widely used in textiles, food, papermaking, building materials, and other fields. The equipment consists of six major systems: feeding, extrusion, rotary cutting, heating, transmission, and cooling. It is equipped with variable frequency speed control, alloy steel nitrided screw, forced lubrication, and fully automatic temperature control system. It operates smoothly and saves electricity, with a long screw life and self-cleaning function, requiring no disassembly for material change.
The series covers three models from DT65 to DT85, with a capacity range of 100-500 kg/h, and the actual power consumption is only 65%-87% of the installed power, offering significant energy savings. The equipment has a wide adaptability to raw materials and flexible die changeover, allowing the production of multi-shaped fish feed pellets, making it an ideal choice for professional bait and industrial modified starch production.
Bait production machinery, bait processing equipment, bait extruder
1. Bait processing equipment production capacity: 100-150kg/h, 200-300kg/h, 300-500kg/h
2. Equipment composition: extrusion main unit, control cabinet, feeder (controlled by frequency converter)
3. Characteristics of puffed bait equipment: The equipment produced by our Datong Company is professionally designed, with adjustments made to the machine cavity and screw structure, enabling diversified functions of modified starch. The modified starch series products produced are suitable for industries such as textiles, food, papermaking, building materials, casting, and petroleum drilling. With further research, the extruder will play an increasingly important role in the modified starch market. The machine consists of a feeding system, extrusion system, rotary cutting system, heating system, transmission system, and cooling system.
Main features of the twin-screw extruder:
1. The main machine adopts advanced frequency converter speed control technology, making the equipment powerful, more stable in operation, and more energy-efficient.
2. The screw is made of alloy steel and treated with nitriding, resulting in a longer service life. Some equipment adopts a modular structure that can be freely combined according to different needs.
3. Forced lubrication system to ensure longer life of the transmission parts of the equipment.
4. Visible fully automatic temperature control system to make temperature control more intuitive and parameters more.
5. The screw has a self-cleaning function, eliminating the need to disassemble the screw for cleaning when the machine is stopped.
6. Different screws and length-to-diameter ratios can meet various production processes.
7. The twin-screw extruder has a wide range of raw material adaptability, diverse product shapes, and flexible configuration.
IV. Production line technical parameters
Model |
Main motor |
Installed power |
Actual power |
Output |
Equipment dimensions |
DT65 |
22kw |
35kw |
25kw |
100-150kg/h |
2.7×1×1.8m |
DT65-P |
22kw |
35kw |
26kw |
120-160kg/h |
2.8x1x1.8m |
DT70 |
30kw |
48kw |
35kw |
200-300kg/h |
2.8×1×1.8m |
DT85 |
75kw |
92kw |
80kw |
300-500kg/h |
4×1.2×2.2m |
