1. Main uses:

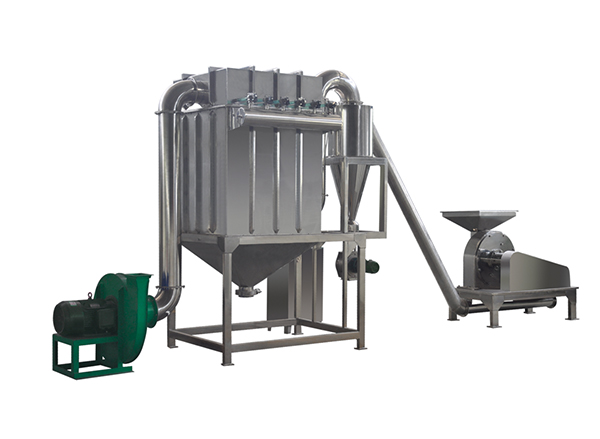

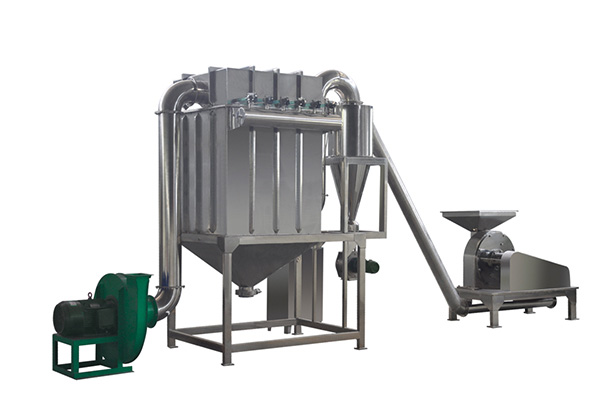

The ultra-fine grinder is composed of three parts: the main machine, the auxiliary machine and the electric control box. It has various functions such as air selection type, no screen, no net, uniform particle size, etc. The production process is continuous. The main machine of this machine does not heat up during crushing operation and can crush various heat-sensitive materials. Its comprehensive performance has reached the international advanced level. This machine is widely used for ultra-fine crushing of low-hardness materials such as food, chemicals, pharmaceuticals, feed, calcium carbonate, plant fibers, dyes, and pesticides.
2. Technical parameters:
model | production capacity（kg/h) | Feed particle size（mm) | Discharge particle size（mesh) | total power（kw) | Spindle speed（r/min) | Dimensions（mm) | weight（kg） |
Type 15 | 50-200 | <10 | 80-320 | 13.75 | 5800 | 4200*1250*2700 | 850 |
Type 20 | 80-300 | <10 | 80-320 | 22.15 | 4200 | 4700*1250*2900 | 8550 |
Type 30 | 100-800 | <10 | 80-320 | 46 | 3800 | 6640*1300*3960 | 960 |
Type 60 | 200-1000 | <12 | 80-320 | 84.15 | 3200 | 7500*2300*4530 | 3200 |
Type 80 | 500-1500 | <12 | 100-320 | 100.4 | 2800 | 8200*2500*4600 | 3800 |
