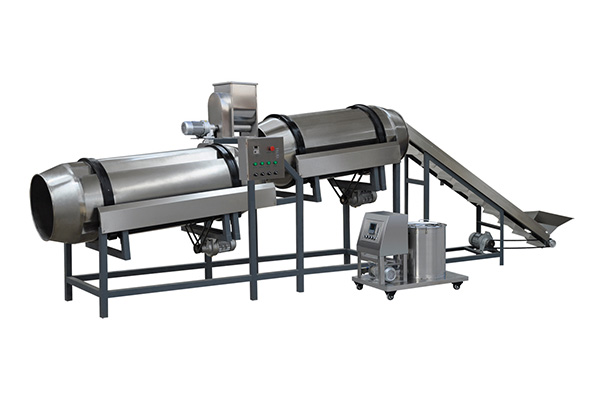

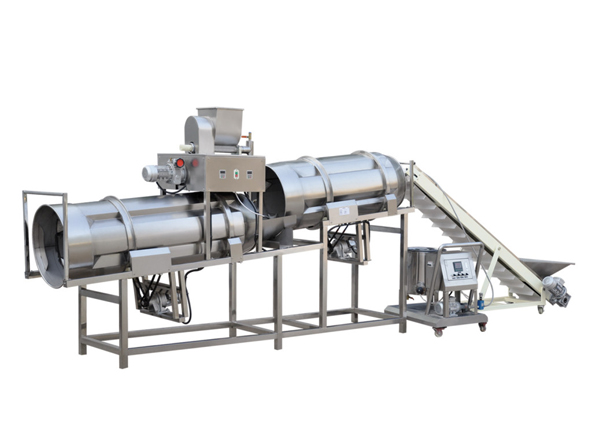

Frying machine seasoning production line
The fried seasoning production line consists of a continuous fryer and a double-drum seasoning line, made of full stainless steel, meeting food hygiene standards. The fryer offers three options: electric heating (60kw), oil-fired, and gas-fired. It uses a stainless steel woven mesh belt with mesh cloth, driven by sprockets and chains for stable operation, with actual power consumption of about 44.25kw, achieving significant energy savings. The mesh belt grid can be flexibly replaced according to food size to ensure output rate. The continuous fryer has a capacity of 80-220kg/h, and the oil-fired model consumes only 10kg of oil per hour.
The seasoning line is equipped with a dual-drum structure—a high drum for oil spraying and a low drum for powder coating, with independent motor-driven reverse rotation to ensure thorough mixing of materials with oil and seasoning powder. The drum's bent scraper design enhances mixing uniformity, while the tapered tail extends mixing time, and adjustable feet control material retention duration. The entire line has an installed power of 4.6 kW, actual consumption of 3 kW, and a production capacity of 100-500 kg/h. With a compact structure and flexible operation, it is an ideal supporting equipment for the seasoning process of fried puffed foods.
Introduction to Frying Machine Seasoning Production Line: Frying Machine Information
Classification: Electric Fryer / Oil Fryer / Gas Fryer
Electric heating power 60kw; this equipment is entirely made of stainless steel, with stainless steel insulation panels; stainless steel woven mesh belt, with mesh cloth laid on the belt; sprocket and chain drive.
Equipment dimensions: 5.1×1.2×1.8m
Motor: 1.5kw 1400rpm
1 Used for frying food; frying capacity varies depending on the amount of water removal required by the food.
2 Main motor 1.5kw, heating power 60kw, total installed power 61.5kw.
3 During normal production, the heating system may stop one layer of heating to reduce power consumption, with electricity consumption approximately 44.25kw.
4. Different mesh belts can be laid according to the size of the food to ensure the yield of the food.
Seasoning production line technical parameters
设备名称/ Device Name |
连续油炸机Continuous fryer |
Model |
YZJ-II |
Device parameters |
|
Input Voltage |
380V/50HZ |
Installed Capacity |
38KW |
Power Consumption |
24KW |
Output |
80-220Kg/h |
Size |
4.0×0.8×1.5m |
Fuel type |
Fuel consumption 10kg per hour |
Seasoning production line data
Power: 0.37kw/0.55kw
1. The drum is bent to form a scraper, with beautiful welds, hygienic and easy to clean.
2. Material residence time can be adjusted via the feet.
3. The tail opening increases mixing time.
4. The exterior uses stainless steel hoops, and the rollers use hard plastic rollers, which are wear-resistant and low-noise.
5. The scraper formed by internal bending increases the mixing uniformity of breakfast cereal inside the drum.
