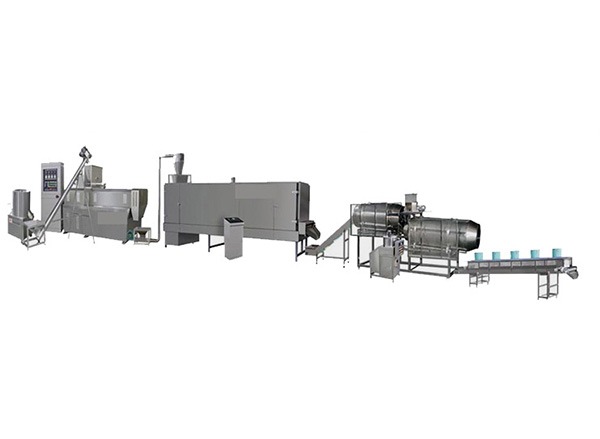

Dog and cat food production line
The twin-screw dog and cat food production line is specifically designed for pet food manufacturing, featuring a fully automated workflow from mixing, conveying, extrusion, and drying to seasoning, cooling, screening, and packaging. It is well-equipped and operates stably.The equipment uses twin-screw extrusion technology. High temperature and high pressure fully gelatinize the starch and transform the protein structure, making the finished product easy to digest and absorb, with good palatability that dogs love to eat.The head of the extruder is equipped with a rotary cutter, and the pellet size can be flexibly controlled by adjusting the cutter speed to meet the needs of different pet breeds.The screw is specially treated for wear resistance and fatigue resistance, with excellent self-cleaning performance, requiring no disassembly for cleaning when changing materials.Oven temperature adjustable from 0-150℃, stainless steel mesh belt for stable conveying; seasoning system optional with high-low drum, single drum or octagonal barrel, adaptable to various flavor requirements.
I. Jinan Datong Twin-Screw Feed Extrusion Machinery Equipment Dog and Cat Food Production Line Configuration:

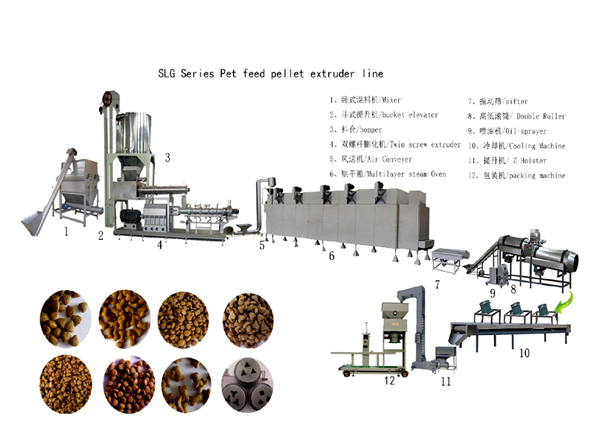

Mixer → Feeder → Twin-Screw Extruder → Dryer → Conveyor → Coating Machine → Packaging Machine
II. The dog food equipment produced by dog food manufacturing enterprises mainly includes three types:
Model Parameters |
SLG65 |
SLG70 Dog food production line |
SLG85 |
SLG90 |
SLG115 |
Main Motor Power |
22KW |
30KW |
75.0KW |
75.0KW |
90kw |
Installed Capacity |
80KW |
110KW |
200KW |
135KW |
165kw |
Actual power consumption |
50KW |
80KW |
100KW |
100KW |
115kw |
Production capacity |
100-140kg/h |
200-240kg/h |
400-500kg/h |
800-1000kg/h |
1000-2000kg/h |
Dimensions |
15.0×1.3×2.4 |
20.0×1.3×2.4 |
30.0×1.5×2.4 |
40.0×1.5×5.0 |
45.0×2.0×5.0 |
III. Process Introduction of Dog Food Processing Equipment (Automation)
1. Mixer: Stirring machine, powder mixer, used to mix and stir the raw materials prepared according to the formula evenly.
2. Feeder: Screw conveyor, reduces material loss, automatically feeds into the expander hopper, saving labor.
3. Extruder: A twin-screw extruder that mixes the raw materials under high temperature and high pressure, then incorporates them into the extruder. The internal structure of the raw materials changes through the extrusion process. The resulting feed is easier to absorb, has better taste, and dogs love it. The head of the extruder is equipped with a rotary cutter that cuts the desired pellets.
4. Conveyor: A pneumatic conveyor that lifts the extruded pellets into the multi-layer oven.
5. Drying oven: A multi-layer oven whose temperature can be adjusted between 0-150 degrees via the control cabinet. The interior of the oven uses stainless steel mesh belts, ensuring stable transportation and low failure rates. Pellet feed circulates through the multi-layer oven to reduce moisture and improve product quality. The main types of ovens include electric ovens, gas ovens, etc.
6. Seasoning machine: high-low drum, single drum, octagonal drum, can mix various desired flavors.
7. Conveyor: cooling conveyor, which can reduce the temperature generated by drying, promote oil solidification, lower the temperature of particles, and make the feed less likely to contain water vapor, facilitating packaging.
8. Vibrating screen: through the vibrating screen, excess external materials and particle residues are screened out to ensure quality and guarantee the reuse of raw materials.
9. Packaging machine: weigh the produced products and package them with a packaging machine. Manual sealing machines and automatic packaging machines can be used. Please contact the manufacturer for details. (What equipment is needed to make dog food, small dog food machinery equipment, what equipment is needed to make dog food)
IV. The dog food production line, cat food production line, monkey feed machinery, mink feed production line, fox feed extrusion machinery, pet feed extrusion equipment, and orangutan feed production line manufactured by Jinan Datong Machinery Equipment Co., Ltd. have been widely welcomed by domestic and international customers for many years. Feed manufacturers are welcome to inquire and place orders at any time. Our company will provide you with excellent services, including pre-sale factory consultation, strict production during the process, and comprehensive after-sales service.
