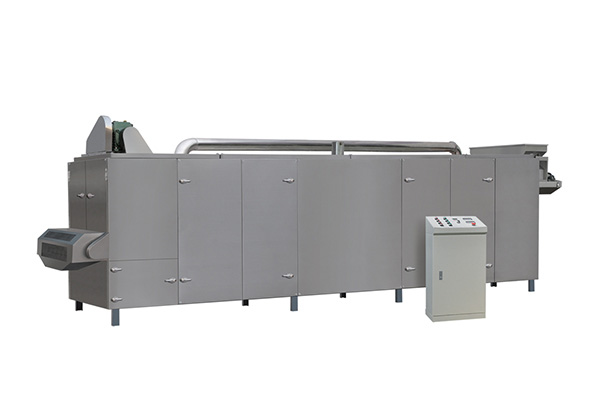

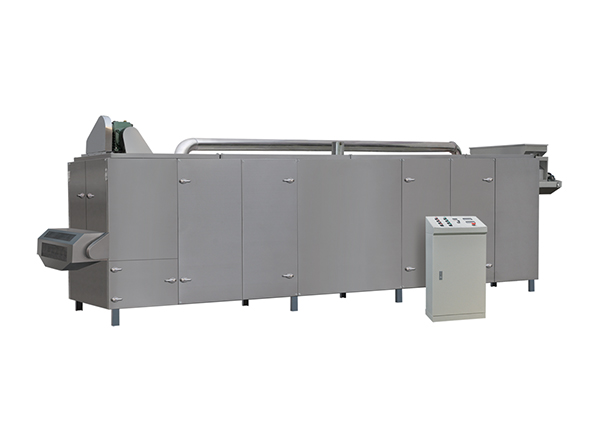

Multi-layer oven equipment
The multi-layer oven equipment series is specifically designed for drying strip-shaped, block-shaped, granular, and other puffed foods and materials. It offers three-layer, five-layer, and seven-layer specifications, with multiple heat source options including electric, oil-fired, gas-fired, and steam. Users can flexibly select according to material characteristics and production capacity requirements.The equipment uses double-pitch roller chain drive with reciprocating drying, ensuring smooth operation without jamming; the drying temperature and time are adjustable, providing excellent drying results.Efficient and energy-saving combustion system paired with reasonable heat source distribution ensures uniform heating of materials, low energy consumption, and high output.The overall design is compact and reasonable, easy to operate.Three-layer electric type: power consumption 28kw/h, capacity 120-300kg/h; Five-layer electric type: power consumption 35.7kw/h, capacity 150-500kg/h; Seven-layer electric type: power consumption 50kw/h, capacity 200-800kg/h; Fuel three-layer type: fuel consumption 7L/h, capacity 150-250kg/h.The equipment length is optional from 5 to 11 meters, suitable for production needs of different scales, making it an ideal supporting equipment for the drying process of puffed food and materials.
Multi-layer oven equipment has a wide range of applications, suitable for drying various strip, block, granular, and other puffed foods or other materials. Users can choose drying boxes with different layers, lengths, and heat sources according to material requirements.
Three-layer/Five-layer/Seven-layer drying box (oven) - (Electric type / Fuel type)
The series of ovens has a wide range of applications, suitable for drying various strip, block, granular, and other puffed foods or other materials. Users can choose drying boxes with different layers, lengths, and heat sources according to material requirements.
Main features:
1. The overall machine design is compact, reasonable, and easy to operate
2. The overall machine transmission uses double-pitch roller chain drive with reciprocating drying, ensuring smooth operation and no jamming.
3. The drying temperature and time are adjustable, resulting in good drying effect.
4. The equipment has an efficient and energy-saving combustion system with reasonable heat distribution, uniform material heating, low energy consumption, and high output.
Technical parameters of the three-layer oven:
Power consumption: 28kw/h
Heating temperature: ~220℃
Production capacity: 120-300kg/h
Dimensions: 5.2*1.25*1.8m
Technical parameters of the five-layer oven:
Power consumption: 35.7kw/h
Heating temperature: ~220℃
Production capacity: 120-300kg/h
Dimensions: 5.5*1.25*2.2m
Technical parameters of seven-layer oven:
Power consumption: 50.0kWh
Heating temperature: ~220℃
Production capacity: 200-800kg/h
Dimensions: 5.5*1.25*2.2m
Technical parameters of the fuel three-layer oven:
Fuel consumption: 7L/h
Heating temperature: ~220℃
Production capacity: 150-250kg/h
Dimensions: 5.6*1.5*2.2m
Available heating sources: electric heating tubes, diesel, natural gas, steam, etc.
Equipment length: 5m, 7m, 8m, 9.5m, 10m, 11m
