Datong Aquatic Feed Extrusion Machinery

Aquaculture was China's early market-oriented reform. The nutritional value of aquatic products is well-known, and their market potential is enormous. Aquaculture is becoming more market-oriented, aquatic feed production is more standardized and larger in scale, large-scale aquatic feed production lines are more popular, and large aquatic feed manufacturers are favored. The aquatic feed produced by Jinan Datong's aquatic feed production line has stable output, uniform texture, and is widely praised.

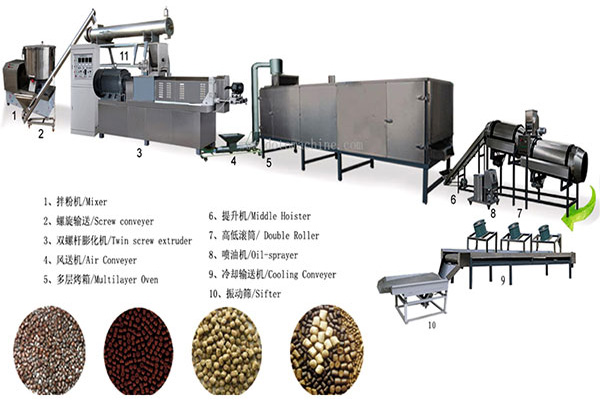

A. Main components of Datong aquatic feed production line

Powder mixer---screw conveyor---extruder---air conveyor---multi-layer oven---seasoning machine---packaging machine B. Process flow of Datong aquatic feed production line:

1. Batching: manual weighing, various required raw materials are weighed according to the formula.

2. Mixing powder: Mixer, thoroughly mix the raw materials.

3. Screw conveyor: Screw conveyor, prevents material spillage and saves costs.

4. Extrusion: Twin-screw extruder, high-temperature and high-pressure extrusion can also cause material expansion, resulting in better taste and easier digestion.

5. Conveying: Pneumatic conveyor, pellet feed is transported to the drying equipment via a pneumatic conveyor.

6. Oven: Drying oven, the extruded feed contains a certain amount of moisture, and the feed is dried using a drying oven.

7. Elevation: Pellet feed exits the oven and is lifted to drums of varying heights for seasoning.

8. Seasoning: Height-adjustable drum, octagonal barrel, single barrel, seasoning is applied by rolling the drum back and forth, ensuring more even coating on the feed pellets.

9. Cooling and conveying: Cool the conveyor and transport the granular feed to the vibrator through the cooling system.

10. Vibrating screening: Vibrating screening sifts the granules through back-and-forth vibration, making them uniform, allowing the recovery of substandard granules, and reducing waste.

11. Packaging: Packaging machine, heavy packaging. Fine packaging can enhance the grade of the feed, making it more convenient and hygienic for customers to use.

C. Features of Datong Aquatic Feed Production Line:

1. Frequency conversion control: The production line adopts variable frequency speed regulation, and the control cabinet allows intuitive viewing of the production line's operation, making it more intelligent and intuitive.

2. Easy to learn: The production line is installed by engineers and tested with the machine. It teaches customers how to use it on-site and is easy to learn and operate.

3. Self-cleaning screw: The screw inside the main engine barrel of this production line is specially treated to be self-cleaning, hygienic, and labor-saving.

4. High cost performance: The main engine of the production line is a multifunctional extruder. By changing molds of different shapes, you can produce products of different shapes, and product upgrades can also be provided based on actual conditions to change the output of the product.

5. Feed size: The production line can adjust the feed size from 1mm to 10mm by adjusting the cutting speed.

6. Palatability: The feed has a high effective consumption rate. The extruded fish feed is sterilized at high temperature by the extruder. The starch gelatinization and fat content are stable. Extruded fish feed improves palatability and digestibility, and has a long shelf life.

7. Energy-saving and less pollution: The production line is powered by electricity, a clean energy source with less pollution, and can operate as long as three-phase electricity is available.

8. Product diversity: The production line also adopts: guppy feed production line, phoenix fish feed production equipment, aquatic feed production line, fish feed production line, extruded fish feed production line, turtle feed production line, various ornamental fish feed production equipment, tilapia production equipment, grass carp feed production line, parrot feed production equipment, carp and crucian carp feed equipment, snakehead fish feed production line, fish food equipment, bullfrog feed production line, and shrimp feed production equipment.

D. There are five main types of aquatic feed production lines:

Model DTSLG65 DTSLG70 DTSLG85 DTSLG90 DTSLG115 Parameter Aquatic Feed Processing Equipment Aquatic Feed Processing Equipment Aquatic Feed Processing Equipment Aquatic Feed Processing Equipment Aquatic Feed Processing Equipment Main Motor Power 22KW 30KW 75KW 75KW 90KW Installed Capacity 80 kW 110 kW 200 kW 135 kW 165 kW Actual Power Consumption 50 kW 80 kW 100 kW 100 kW 115 kW Output: 100-140 kg/h 200-240 kg/h 400-500 kg/h 800-1000 kg/h 1000-2000 kg/h Dimensions: 15.0×1.3×2.4 20.0×1.3×2.4 30.0×1.5×2.4 40.0×1.5×5.0 45.0×2.0×5.0 E. Datong Machinery Equipment After-Sales Service:

1. Formula: The company's after-sales service department can provide basic formulas for free or introduce more marketable formula experts.

2. Training: After equipment installation and debugging, relevant operators can be trained on-site, and the equipment is easy to operate.

3. Follow-up: Regular after-sales phone calls to customers help you solve related problems encountered when using the equipment.

4. Maintenance: Our company provides customers with high-quality, low-cost spare parts year-round, and offers equipment upgrades and new product development support, enabling you to truly achieve sustainable development.

5. Quality Assurance Maintenance: Equipment damage occurring at the end of the warranty period. Upon receiving customer notification, users within the province will arrive at the repair site within two days. Overseas users will negotiate with technical personnel to arrive at the site as soon as possible. For insured equipment, the company will charge service fees and spare parts replacement fees.

6. Out-of-Warranty Maintenance: For non-human factors occurring within the warranty period, the company provides free repairs. The company offers repair services for equipment damage caused by human factors and force majeure, but charges relevant fees.

Jinan Datong Aquatic Feed Production Line, Datong Fish Feed Production Line, Datong Lobster Feed Production Line, Datong Crab Feed Equipment, Tilapia Production Line, Small Fish Feed Production Equipment, Carp Feed Extruder, Snakehead Fish Feed Production Line, Turtle Food Equipment
