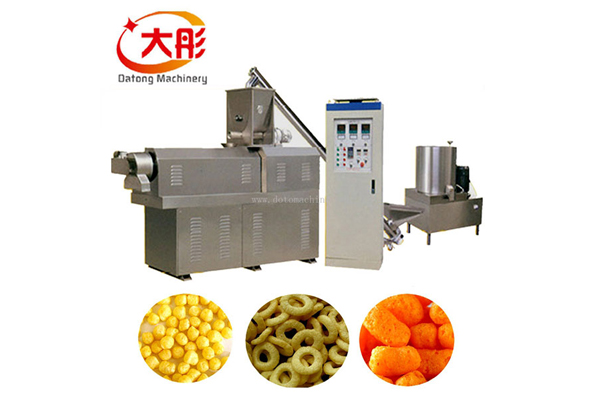

Characteristics of twin-screw extruder

1. The main shaft of the twin-screw extruder is of a combined structure, and the spare extension shaft can adapt to the extrusion processing of different raw materials. The machine features a novel design, compact structure, and high production efficiency.

2. The twin-screw extruder can be equipped with an automatic feeding system. The feeder uses a horizontal conveying screw controlled by a modern switched reluctance speed-regulating motor, with the other end connected to the extrusion machine. The feeding amount can be adjusted to control the extrusion output, effectively preventing material bridging.

3. Cutting system: the independent cutting device is easy and quick to connect to the main body. The variable-speed cutting head allows convenient adjustment of the cutter and the gap between the cutter and the template. Different templates can be configured as needed to ensure the required material diameter and length, producing products of various specifications and shapes. The twin-screw extruder is simple and convenient to use, with stable transmission and low noise.

4. The main components of the twin-screw extruder are made of special alloy materials through heat treatment, ensuring a long service life and low feed production costs.

5. The dry extrusion process uses self-heating and does not require a steam system. The screw design has a strong self-cleaning function, allowing the screw grooves to self-purify, so there is no need to stop for cleaning when changing formulas or product varieties. The twin-screw extruder has a strong pumping effect, strong material adhesion and diffusion, fast conveying speed, and relatively stable product quality.
