Jinan Datong dog food twin-screw extruder has stable output, uniform texture, slow wear and low replacement frequency of wearing parts. It uses twin-screw expansion and extrusion molding, and passes through supporting equipment until packaging. It has a high degree of automation and saves labor. It can be used as: pet feed production line, cat food production line, military dog feed production line, ornamental bird food production line, monkey food puffing machinery and equipment, dog food making machine production line, etc., and is favored by the market.
1. Dog food manufacturing machine manufacturing process of dog food equipment:
Crushing of raw materials → Preparation of raw materials in proportion → Mixing and mixing → Output and delivery → Twin-screw feed expansion → Output and delivery → Drying moisture → Spraying grease → Double-cylinder seasoning system → Cooling output → Vibration screening → Storage → Weighing and packaging
2. Machinery and equipment configuration for producing dog food:

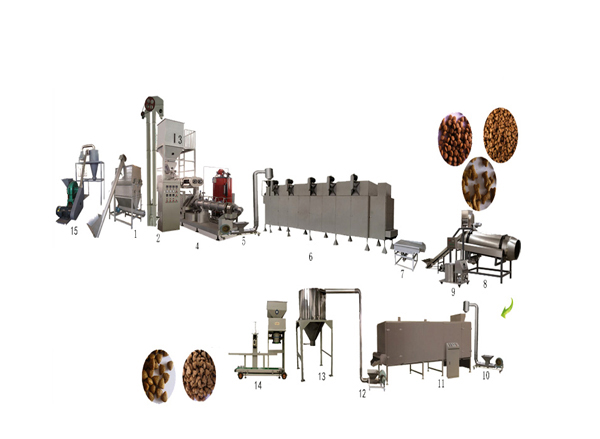

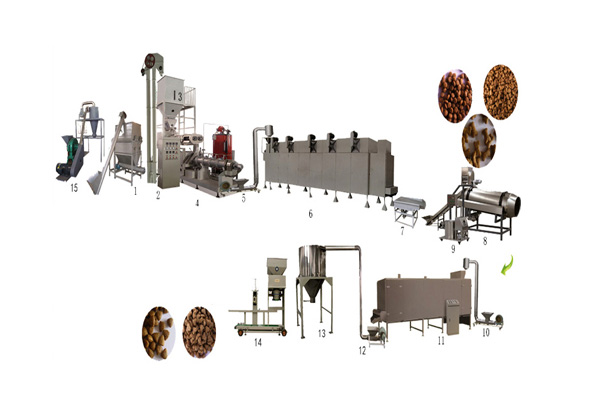

Bone paste machine→Powder mixing machine→Screw feeder→Twin-screw extruder→Conveyor→Multi-layer oven→Spray seasoning system→Cooling conveyor→Vibrating screen→Packaging machine
3. Dog food making machine There are three main types of dog food manufacturing equipment:
Model parameters | SLG65 | SLG70 Dog food production line | SLG85 | SLG90 | SLG115 |
monitor rate | 22KW | 30KW | 75.0KW | 75.0KW | 90kw |
Installed capacity | 80KW | 110KW | 200KW | 135KW | 165kw |
Actual power consumption | 50KW | 80KW | 100KW | 100KW | 115kw |
production capacity | 100-140kg/h | 200-240kg/h | 400-500kg/h | 800-1000kg/h | 1000-2000kg/h |
Dimensions | 15.0×1.3×2.4 | 20.0×1.3×2.4 | 30.0×1.5×2.4 | 40.0×1.5×5.0 | 45.0×2.0×5.0 |
4. Dog food processing equipment process composition:
1. Mixing system: powder mixer, mixer, weigh out the materials according to the formula, and mix thoroughly.
2. Feeding machine: screw conveyor, which reduces material spillage and automatically feeds into the extruder feeding hopper, saving labor.
3. Extruder: Twin-screw extruder, the raw materials are extruded and extruded through high temperature and high pressure. The internal structure of the raw materials changes through extrusion. The fully mature feed is easier to digest and absorb, has a better taste, and dogs love to eat it. The head of the extruder is equipped with a rotary cutter, which cuts out the required particles.
4. Lifting conveyor: Lift the puffed particles into the multi-layer oven.
5. Multi-layer oven: The oven temperature can be adjusted by the control cabinet between 0-150 degrees. The inside of the oven is a stainless steel mesh belt, which ensures smooth transportation and low failure rate. The pellet feed is baked through the circulation of the multi-layer oven, which can reduce the moisture and increase the product shelf life. Ovens mainly include: electric oven, gas oven, etc.
6. Spray seasoning system: Spray oils, attractants, etc. onto the surface of the feed through an oil spray machine. At the same time, mince meat and spices are sprayed, and the seasoning system is rolled and sprayed evenly. By spraying seasoning, the burrs and other burrs of the feed itself can be removed to make the surface smooth, and the fragrance will attract dogs, and dogs will love to eat it.
7. Cooling conveyor: It can reduce the temperature generated by drying, promote the coagulation of oil, reduce the temperature of particles, make the feed less prone to moisture and facilitate packaging.
8. Vibrating screen: Through vibrating screening, excess external materials and particles are screened out to ensure quality and reuse of raw materials.
9. Packaging machine: The produced products are weighed and packaged through the packaging machine. Manual sealing machines and automated packaging machines can be used. Please call the manufacturer for specific details.
New and old customers are welcome to purchase our dog food making machine to manufacture dog food equipment. The company can provide OEM processing, engineering design, preferential supply of accessories and equipment upgrades! For more details, please call company sales.
