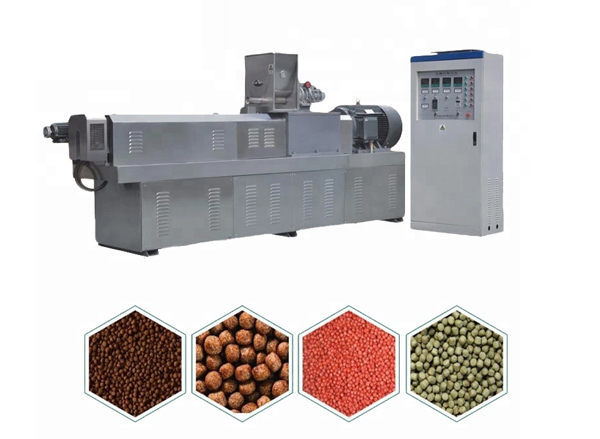

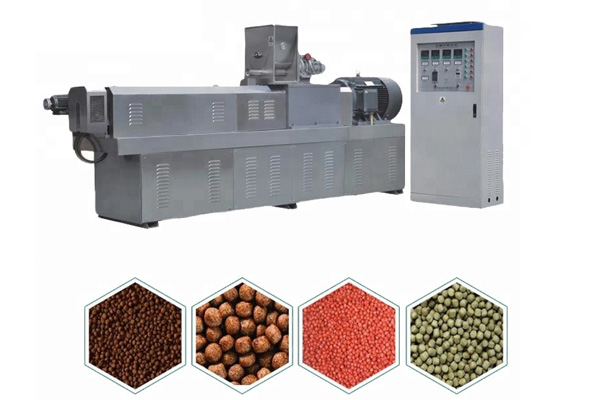

Floating fish feed processing equipment
This production line is an economical solution that addresses the pain points of small single-screw extruders, such as insufficient expansion, difficult cleaning, limited fresh meat addition, and rapid screw wear. The equipment can directly extrude 20%-40% fresh meat and bone paste without pretreatment, significantly reducing raw material costs. By adjusting parameters such as ingredients, temperature, and moisture, the finished products have novel shapes, crispy texture, and rich nutrition. By changing the mold, it can produce feed for multiple categories such as fish, foxes, minks, and birds.
The series covers three models from SLG65-P to SLG85-P, with a production capacity ranging from 100 to 500 kg/h. The entire line operates automatically from mixing, extrusion, drying to seasoning, and the self-cleaning screw design eliminates the need for disassembly when changing materials. The company provides recipe support, installation and commissioning, and lifelong maintenance services, making it a cost-effective choice for farms and entrepreneurs.
① Jinan Datong Company has developed and manufactured various models of fish feed production lines based on market demand, with multiple configurations depending on output capacity.
② This fish feed production equipment can adjust process parameters such as raw materials, temperature, and moisture to give the product novel shapes, unique taste, rich nutrition, and fine texture, suitable for different fish feed flavors.
③ This fish feed production line is widely used for producing feed for foxes, minks, monkeys, birds, fish, cats, and puffed corn, making it an ideal choice for various manufacturers.
④ Fish feed food production line, economical type, extruded fish feed processing equipment, with a production capacity of 120-1000 kg/h. This fish feed food production line can add 20-40% animal viscera, chicken frames, etc., ground into bone paste and meat paste for direct extrusion of fish feed, solving the problem of processing fresh meat, fresh bones, and slaughterhouse by-products from dehydration to crushing. It is highly favored by customers!
⑥ This fish feed food production line solves the shortcomings of small single-screw fish feed machines, such as insufficient expansion, difficulty in cleaning the screw after each production, limited addition ratio of fresh meat and bone paste, rapid screw wear, and high later-stage accessory costs. It is highly favored by large dog farms and individual entrepreneurs.
⑦Different shapes and sizes of feed can be changed molds and the expansion degree can be adjusted.
I. Fish feed food production line process flow:
Ingredient mixing → blending → conveying → extrusion puffing → conveying → drying → oil spraying → seasoning → cooling → screening → packaging
II. Fish feed production machinery and equipment configuration: Mixer → Feeder → Extruder → Conveyor → Multi-layer oven → Seasoning line → Cooling conveyor → Vibrating screen → Packaging machine
III. There are three main models of extruded feed processing equipment:
Model Parameters |
SLG65-P Fish feed food production line |
SLG70-P Fish feed production line |
SLG85-P Puffed feed machinery |
Main Motor Power |
22KW |
30KW |
90KW |
Production capacity |
100-140kg/h |
200-240kg/h |
400-500kg/h |
Dimensions |
14.0×1.3×2.4 |
18.0×1.3×2.4 |
20.0×1.5×2.4 |
4. Composition of Fish Feed Production Line Process:
1. Mixer: Mix raw materials such as corn flour, rice flour, bean flour, meat powder, grain flour, and additives with a certain proportion of water thoroughly and evenly.
2. Feeder: Using a motor-driven screw conveyor to transport the mixed raw materials to the extruder's hopper, ensuring convenient and fast feeding.
3. Twin-screw extruder: Under high temperature and high pressure conditions with screw extrusion, different types of feed can be produced by adjusting the process. The specific particle size and shape can be changed by replacing the mold.
4. Conveyor: Transport the feed to the oven.

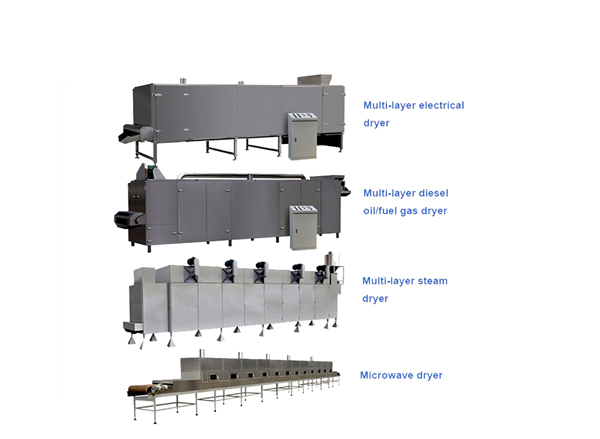

5. Multi-layer oven: The oven is mostly electric, with a temperature range of 0-200 degrees Celsius, adjustable via the control cabinet. The interior features a stainless steel double-layer mesh belt, which reduces moisture in feed pellets, improves the degree of gelatinization, and extends shelf life.
7. Seasoning line: The oil sprayer sprays oils, attractants, etc. The seasoning drum comes in types such as octagonal drum, round drum, single-drum elevator, and double-drum seasoning line. Configured according to output and product properties, it sprays oil onto the feed surface while evenly distributing minced meat and spices.
8. Cooling conveyor: Lowers the temperature of fried products and feed, promotes fat solidification, reduces pellet temperature, and facilitates packaging.
9. Vibrating screen: Screens out excess scattered materials and particles to ensure quality while enabling the reuse of raw materials.
10. Packaging machine: manual sealing machine or automatic packaging machine can be used.
5. Company after-sales service
1. Our after-sales service personnel can provide the ingredients and basic product formulas for related products.
2. On-site training for the relevant personnel of the buyer on equipment operation and regular maintenance.
3. Regular after-sales phone follow-ups with customers to help resolve any related issues encountered during equipment use.
4. Our company provides high-quality and affordable spare parts to customers year-round, and offers support for equipment upgrades and new product development.
5. If equipment damage occurs after the warranty period expires, upon receiving notification from the buyer, users within the province will have maintenance personnel arrive at the site within two days. For users outside the province, discussions will be held with technical staff to ensure arrival at the site in the shortest possible time. For out-of-warranty equipment, the company will charge service and spare parts replacement costs.
6. During the warranty period, the company provides free repair for equipment damage caused by non-human factors. For damage caused by human factors or force majeure, the company offers repair services but charges relevant fees.
