Frying machine

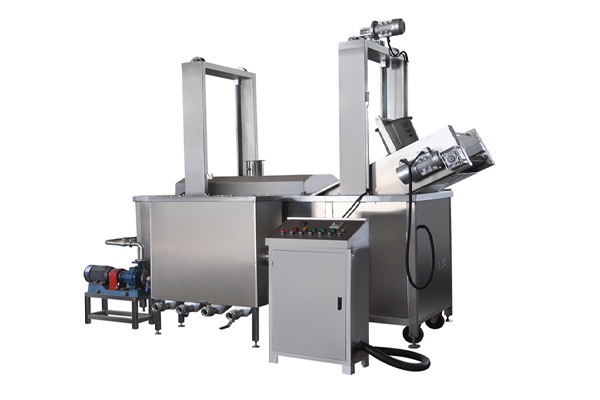

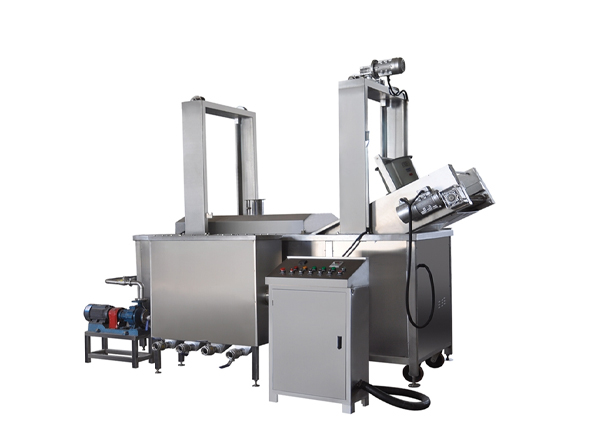

Fully automatic large-scale frying machine production line is specially designed for high-volume fried food production, suitable for various products such as fish, dried tofu, broad beans, peanuts, crispy rice, fried dough twists, Sachima, meat pies, and chicken drumsticks.The machine adopts a double-layer mesh belt structure, equipped with a paddle stirring device, effectively preventing materials from sticking together and ensuring consistent product quality.The inner liner, mesh belt bracket, pot body bracket, and outer shell are all made of stainless steel, resistant to corrosion and easy to clean; the herringbone stainless steel mesh belt is equipped with baffle plates on both sides to prevent food from leaking out.The equipment supports multiple heating methods such as electricity, diesel, natural gas, and external circulation of thermal oil, and can be customized according to customer requirements.Adopts high-quality motor and inverter drive, with adjustable speed and controllable time; electric step lifting for easy maintenance.Continuous operation significantly increases production and saves labor.The optional matching deoiling machine, seasoning machine, and conveyor make it an ideal investment choice for the frying process of large food enterprises.
The fully automatic large-scale frying machine production line is suitable for food enterprises with high output. The manufacturing process can adopt different designs, such as oil-water separation, pure oil longitudinal slag scraping, and simple pure oil design, depending on the user's products. It is mainly applicable to: fish, dried tofu, broad beans, green beans, peanuts, crispy rice, glutinous rice sticks, cat ear-shaped snacks, Sachima, fried dough twists, meat pieces, meat patties, chicken legs, etc.
Continuous operation can increase production output, save labor, and ensure consistent product quality.

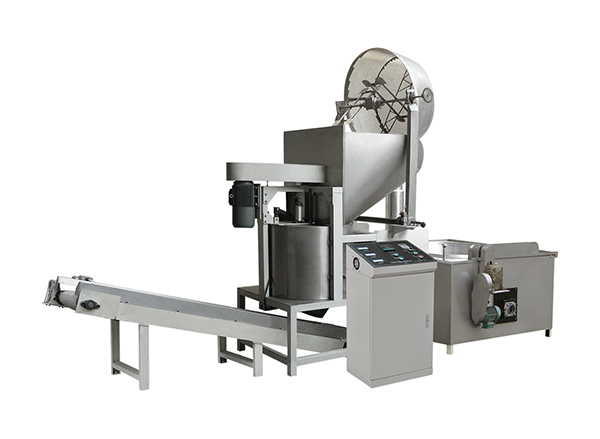

Supporting equipment can include deoiling machines, seasoning machines, conveyors, etc.
Energy sources can be electricity, diesel, natural gas, or external circulation of thermal oil for heating.
Note: The dimensions of the equipment are determined based on the customer's production capacity.

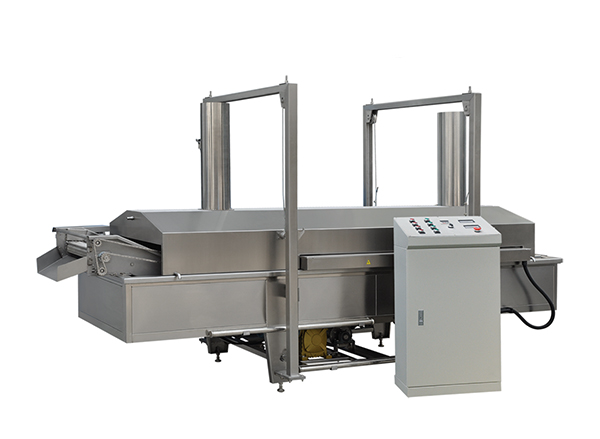

Based on the process characteristics of the product, this frying machine adopts a double-layer mesh belt structure. It uses electric heating, and the front section is equipped with a paddle stirring device, which helps stir the materials entering the frying machine to prevent them from sticking together. This structural system has a low oil capacity and fast oil turnover rate, which helps improve the quality of frying oil.
1. The inner tank is made of stainless steel plates
2. The mesh belt support is made of stainless steel plates
3. The pot body support is made of stainless steel profiles
4. The outer shell is made of stainless steel plates
5. The mesh belt adopts a herringbone stainless steel mesh belt
6. Both sides of the mesh belt are equipped with material baffles to prevent food from leaking out
7. By adjusting the distribution of oil intake, the oil temperature at the front and rear ends is ensured
8. The drive uses high-quality domestic motors and reducers (joint venture brand)
9. The motor speed is controlled by a frequency converter, with adjustable time (joint venture brand)
10. This machine uses electric graded lifting
